Duravit DuraSystem Front Flush Art. WD1021000061

• For wall-hung WC with fastening distance 18cm or 23cm
• For front actuation
• For installation in front or inside a drywall or a solid wall
• Self-supporting frame and concealed cistern

Dimensions :

• Height 114.8cm
• Length 59cm

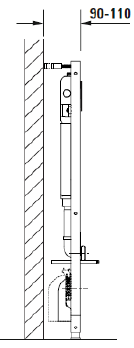

• Thickness Ultra Thin9cm (More Space Saving)

Flush Volume setting : 4.5ltr and 3ltr (adjustable to 6tr/3ltr)

Connection :

• Brass R ½” angle stop valve
• Water connection from the top or behind

Technical Details: Element carries 400kg (DIN EN 997)

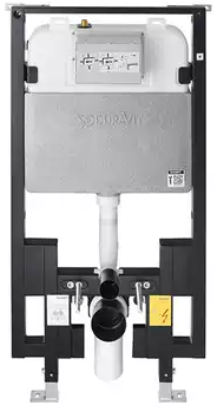

DuraSystem in wall carrier, Standard, 1148x590x90mm

Features
1. Ultra-thin cisten, 90mm, more space saving.

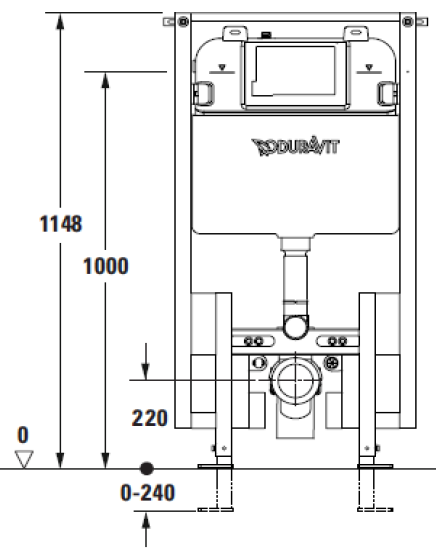

2. The height of the frame is 1148mm, and the adjustable foot can be adjusted from 0～240mm.
3. The frame is made of high strength carbon steel and the surface is painted at high temperature.
4. Loading ≥ 400kg.
5. The cistern is made of high toughness, high impact-resistant HDPE material.
6. EPS with DURAVIT logo protective layer to protect the cistern and reduce the noise.
7. Inlet valve and flush valve pass 200,000 times endurance test, to ensure long-term use.
