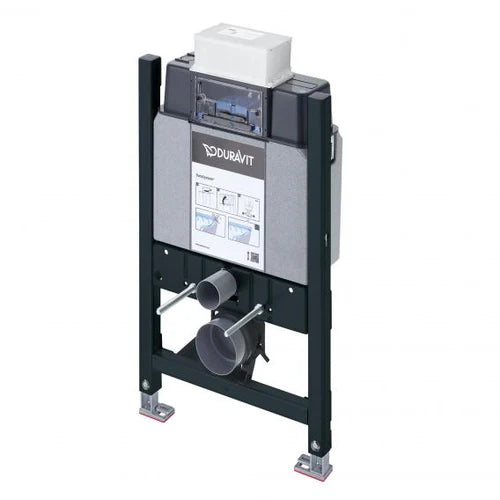

Duravit DuraSystem Top Flush Art. WD1033000071

• For wall-hung WC with fastening distance 18cm or 23cm
• For TOP actuation
• For installation in front or inside a drywall or a solid wall
• Self-supporting frame and concealed cistern

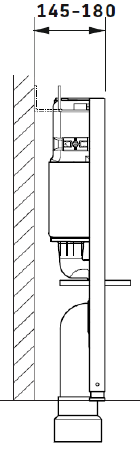

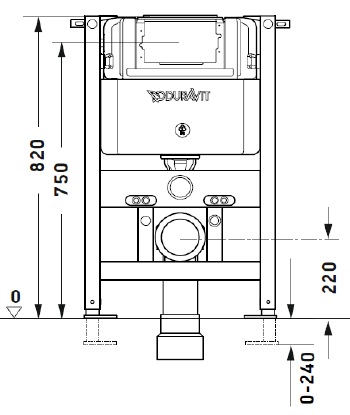

Dimensions :

• Height 82cm
• Length 50cm
• Width 14.4cm

Flush Volume setting : 4ltr and 3ltr

Connection :

• Brass R ½” angle stop valve
• Water connection from the top or behind

Technical Details: Element carries 400kg (DIN EN 997)

DuraSystem in wall carrier, Standard, 820x500x144mm

Features
1. Top or front actuation available
2. Low height cistern with 820mm and the adjustable foot can be adjusted from 0～240mm
3. The frame is made of high strength carbon steel and the surface is painted at high temperature
4. Loading ≥ 400kg
5. The cistern is made of high toughness, high impact-resistant HDPE material
6. EPS with DURAVIT logo protective layer to protect the cistern and reduce the noise
7. Inlet valve and flush valve pass 200,000 times endurance test, to ensure long-term use
8. Silent valve, comply with the European noise standards
