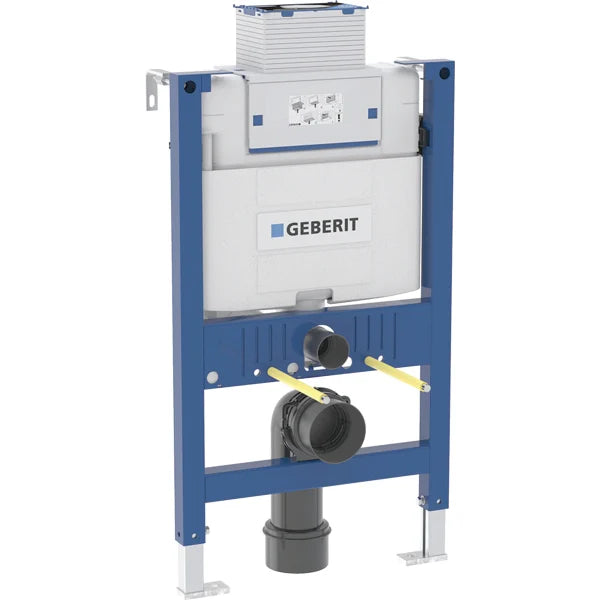

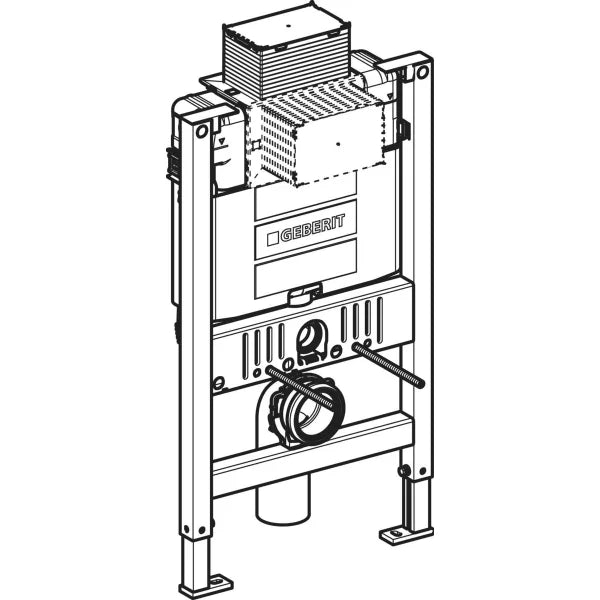

Geberit Duofix Omega Concealed Cistern Art. 224.531.00.1

Application purposes

• For drywall construction
• For installation in part-height prewall installations
• For wall-hung WCs with connection dimensions in accordance with EN33:2011
• For wall-hung WCs with projection up to 62 cm
• For dual flush
• For floor constructions 0–20 cm
• Galvanized feet
• Feet adjustable 0–20 cm
• Connection bend can be mounted without tools
• Concealed cistern with top or front actuation
• Concealed cistern, fully insulated against condensation
• Immediate post flush possible with factory setting
• Water supply connection on the left or rear left
• Protection cover box for service opening protects against moistureand dirt
• Protection box for service opening can be cut to length

Characteristics

• Statically self-supporting frame, protected against corrosion with powder coating
• Frame top open
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces

Scope of delivery

• Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• Connection set for WC, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• 2 protection plugs
• 2 threaded rods M12
• Fastening material

Flush Volume setting : 4.5ltr and 3ltr (adjustable to 6tr/3ltr)

Technical Details: Element carries 400kg (DIN EN 997)
