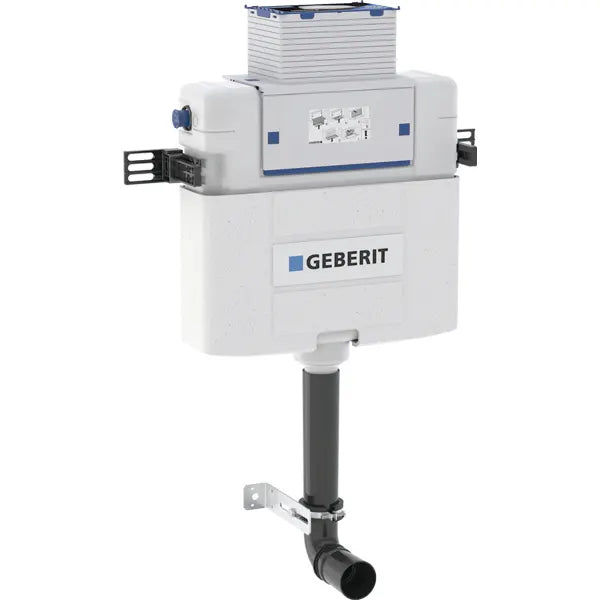

Geberit Omega Concealed Cistern Art. 224.512.00.1

Geberit Omega Naked Concealed Cistern

• Front/ Top Operated
• Material: HDPE Tank

• Flush Volume: 3L Half Flush/ 4.5L Full Flush
• Recommend to have 1/2 inch drainage pipe (to allow any leakage to be drained off and detected visually).

Application purposes

• For masonry walls
• For installation in part or room-height prewall installations
• For installation in room-height installation walls For floor-standing and wall-hung WCs
• Dual Flush ONLY


Characteristics

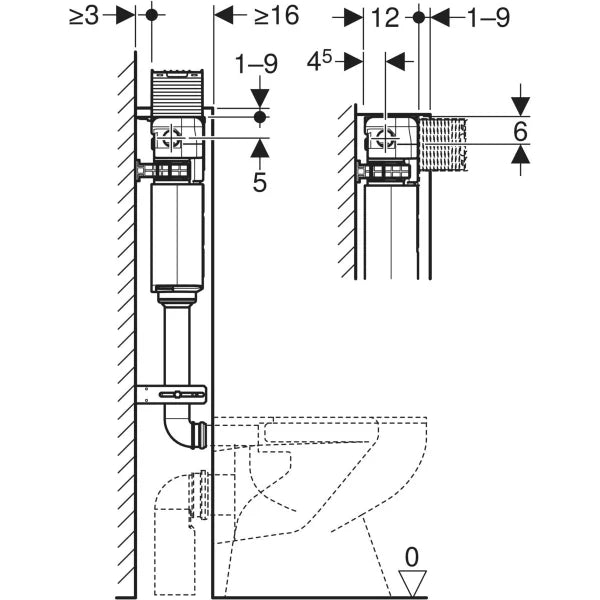

•  Adjustable in depth
• Concealed cistern with top or front actuation
• Concealed cistern, fully insulated against condensation
• Immediate post flush possible with factory setting
• Welded flush bend

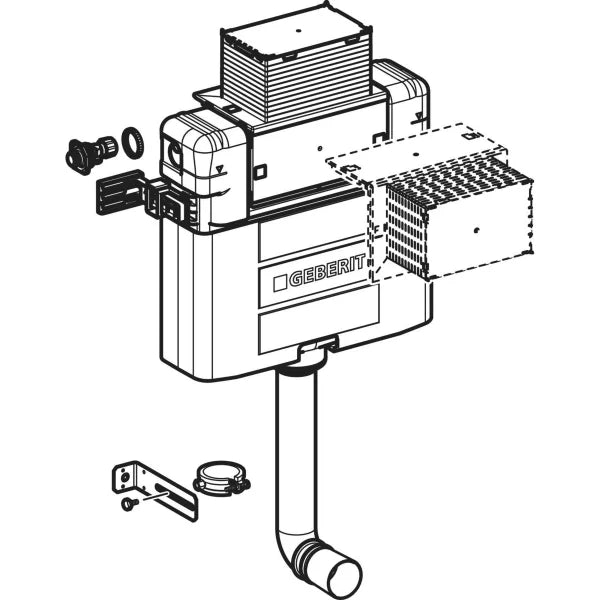

Scope of delivery

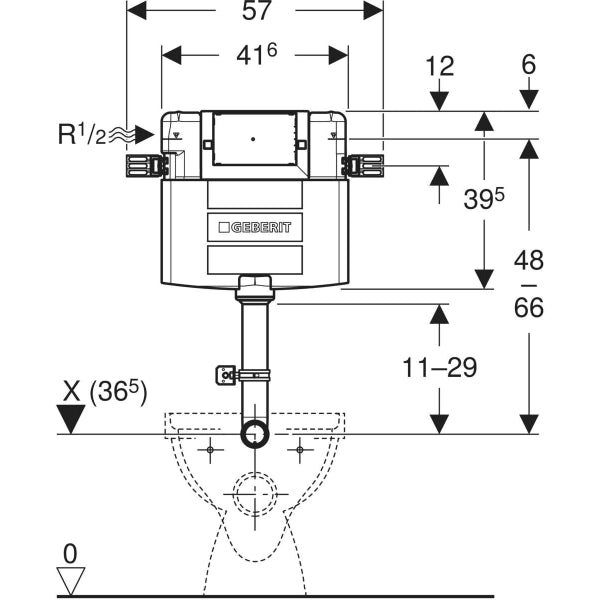

• Water supply connection R 1/2", compatible with MasterFix andMeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Flush bend extension, ø 45 mm
• Protection plug
• 2 fixing brackets
• Fastening material

Plate selection only "OMEGA" models.
