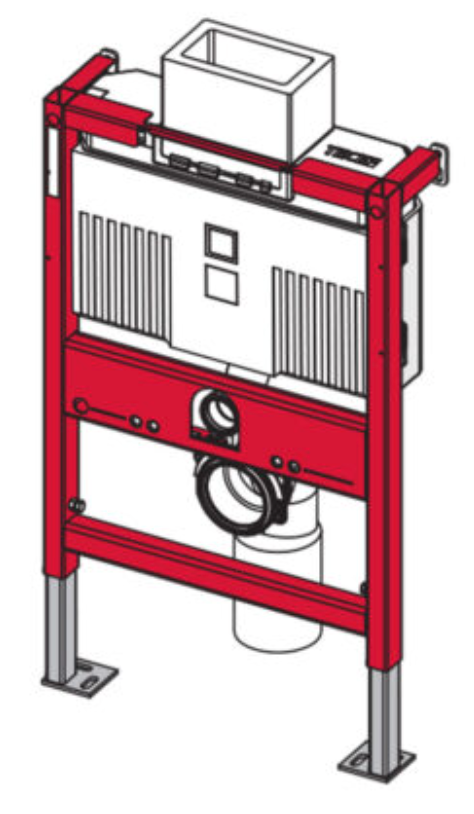

TeceConstruct Full Frame Concealed Cistern 750mm Art. 9300294 (Top Actuation)

Product Highlights

Toilet module including “easy fit” flush plate mounting. For the Single block assembly, as pre-wall module Solid walls and for installation in Suitable for metal or wooden stud walls. Uni 750 cistern for actuation of above:
• Safety tank made of impact-resistant Plastic, tested according to EN 14055
• Flushing cistern completely pre-assembled and sealed
• Cistern connection with external thread R 1/2” sideways
• 8 liter tank volume; 6 liters preset standard flush volume; 4.5 Liter flush volume adjustable at any time; 3 liters of partial flushing
• Dual-flush technique residual volume for immediate cleaning rinse usable.
• Insulated against condensation
• For TECE flush plates and toilet tap
• As a single or dual-flush cistern usable
• “Easy fit” actuator plate mounting
• Low-noise hydraulic Filling valve, fittings group 1 according to DIN 4109 Module frame
• Self-supporting, powder-coated
• Two retaining bolts and nuts M 12

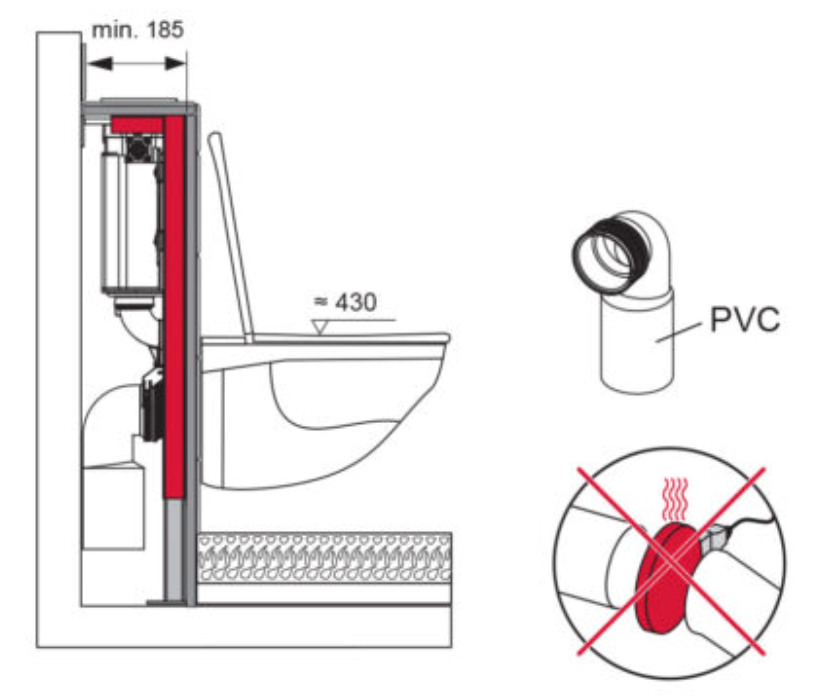

• WC drain elbow DN 90 to DN 110 PVC
• WC connection set DN 90, including protective plugs
• Fastening set for solid walls

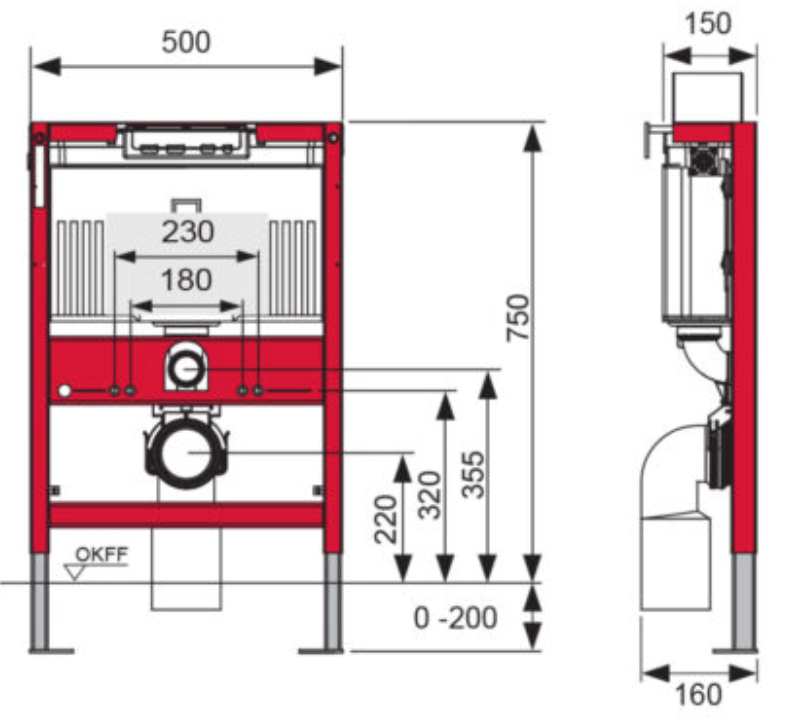

Dimension: 500mm(L) X 150mm(W) X 750mm(H)
Top Actuator Height 750mm

All Actuators FIT All Cisterns!!
